Abit NF7-M Motherboard

Page: 5/6

Benchmarks

Test-Bed System Specs:

Abit NF7-M Motherboard (Onboard video)

AMD Athlon XP 2500+ Special Edition with 512k L2 Cache

512MB Kingston PC2700 Ram

Western Digital 60GB HDD

GeForce 4 Ti4200 with 8x agp and 128mb ddr

SoundBlaster Live! X-Gamer 5.1

DVD-ROM and CD-RW

Windows XP Professional Corporate w/ SP1

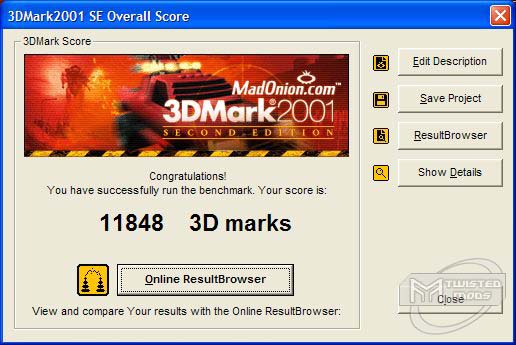

This benchmark was taken with my graphics card in the board. As you can see the performance was very good! The graphics card used on our previous Soltek SL-75FRN-L review (Gainward GeForce4 Ti4800 SE 128MB) only recieved 10,389 3dmarks...

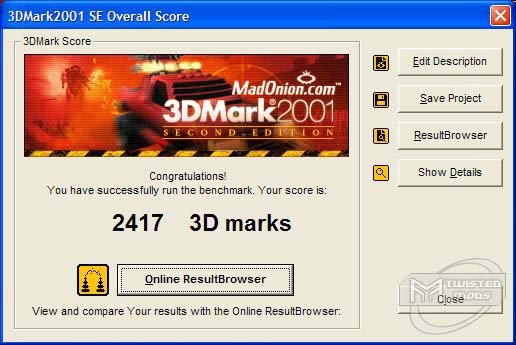

I even tweaked the settings for this one, but this is all the performance I could get out of the onboard unit. If you?re planning to browse the internet with this board that?s cool, but DON?T try to play any games. The NVIDIA GeForce4 MX440 Graphics Unit included on this board features no pixel shader, which required me to pass a majority of the tests in 3dmark.

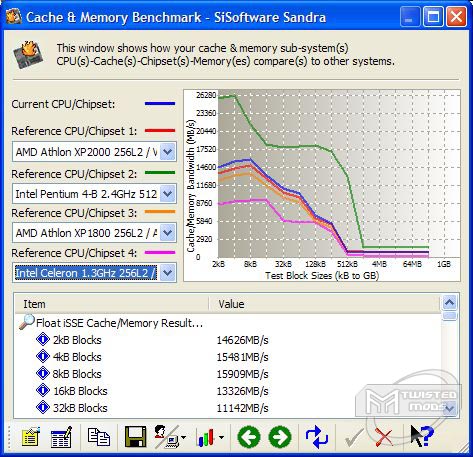

This was taken with 512mb Kingston ram at 266 MHz.

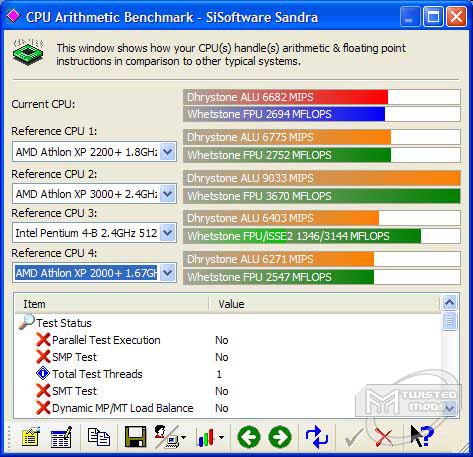

These are the cpu arithmetic results with an AMD Athlon XP 2500+.

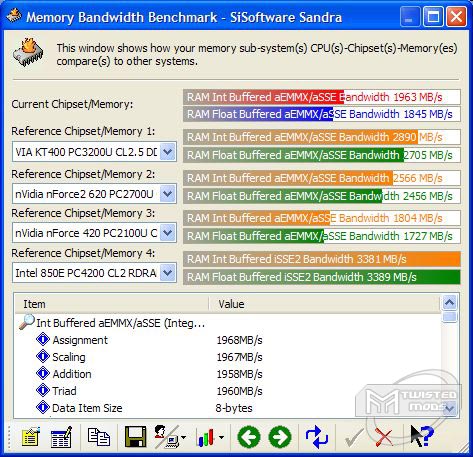

This was taken with 512mb Kingston ram at 266 MHz.

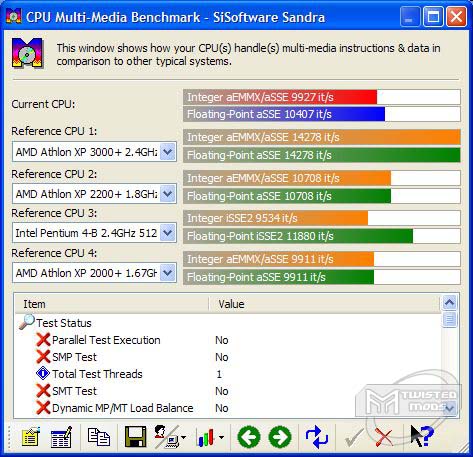

This was taken with the AMD Athlon XP.

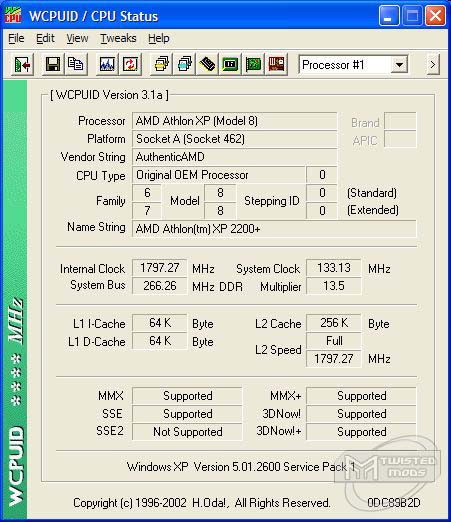

These were taken with my friends Athlon XP 2200+.
