LED Case Feet

Page: 3/4

Now with the leads of the led bent at 90 degrees, place the tip of the led into the bead of hot glue.

Make sure the leads are recessed into the cut notch.

After the bead of glue hardens, fill the rest of the lid about 3/4 of the way full with hot glue (Taking care to not get many air bubbles in the glue)

And place the head of the screw slightly into the glue centered in the lid. Hold the screw in place untill the glue cools and hardens.

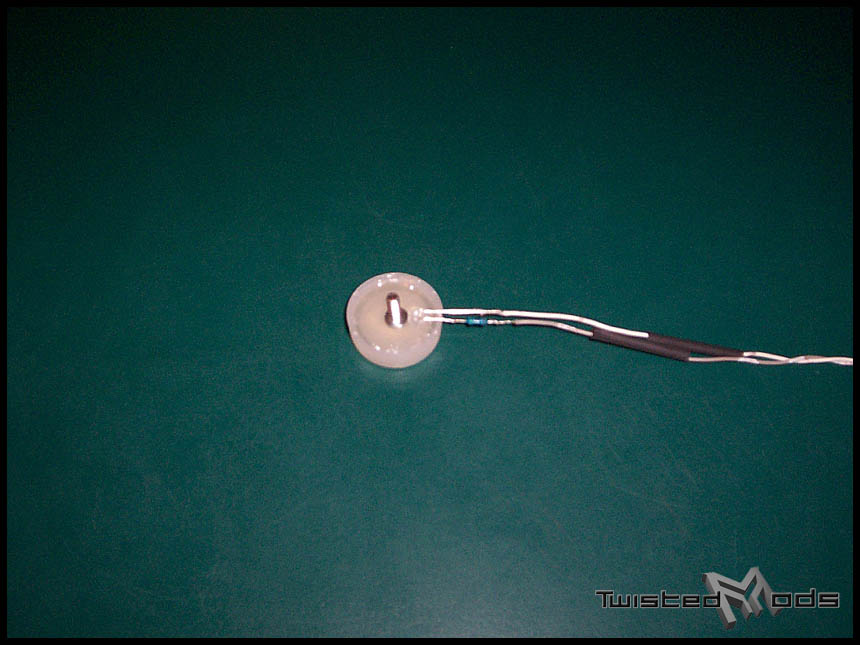

Next you want to solder a resistor to the positive lead of the led.

Now solder a 2ft. length piece of 2 conductor wire to the resistor and the other lead.

Cover the indivdual wires with about a 1" piece of 1/8" heat shrink tubing and then cover both wires

With about a 1&1/4" piece of 1/4" heat shrink tubing.

Fill the lid the rest of the way with hot glue, covering the head of the screw and the leads of the led.

Take care not to get glue on the outside of the lid.
