Winamp LED Visualization

Page: 4/5




Now you will need to attach the other end of the wires to your resistors. Again prepare all your wires and surfaces (read: "flux those babies up") and solder away. Solder the ground first and make your way from the bottom on up.

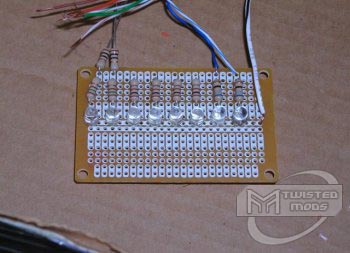

Detailed shot of the LED, resistor, and wire placement. Notice the ground wire was looped through. This is to make better wire to copper contact with the board. I wouldn't want this thing sparking beside my HDD's!
